Radiator Tank Clinching Tool 10mm Teeth for Auto Radiator Machine

Name: Radiator Tank Clinching Tool 10mm Teeth for Auto Radiator Machine
Brand: Wuxi Wondery Industry Equipment Co., Ltd
Price: 75 USD
Availability: InStock

Nama Merek:	WONDERY
Moq:	1
harga:	$75

Informasi Detail

Deskripsi Produk

Informasi Detail

Tempat asal:

Fujian, Cina

Berat:

1500 kg

Komponen inti:

Motor

Lebar gigi:

10mm

Berat gigi:

5kg

Ukuran alat meraih:

10MM, 20MM, 30MM, 40MM

Jenis mengemudi:

Pneumatik atau servo

Tinggi radiator:

350-850mm

Lebar radiator:

100-800mm

Cara crimping:

Jalan melangkah

Kapasitas produksi:

24 core/jam

Penggerak:

Servo + pneumatik

Jumlah gigi berkerut:

maks 100 buah

Kekuatan total:

1.5kw

Tingkat Tegangan:

AC-220V; 50Hz

Dimensi keseluruhan:

2600 × 2200 × 1900mm

Menyoroti:

10mm radiator clinching tool

auto radiator machine tool

radiator tank repair tool

Deskripsi Produk

Radiator Tank Clinching Tool for Auto Radiator Plastic Tank Clinching Machine

Product Application

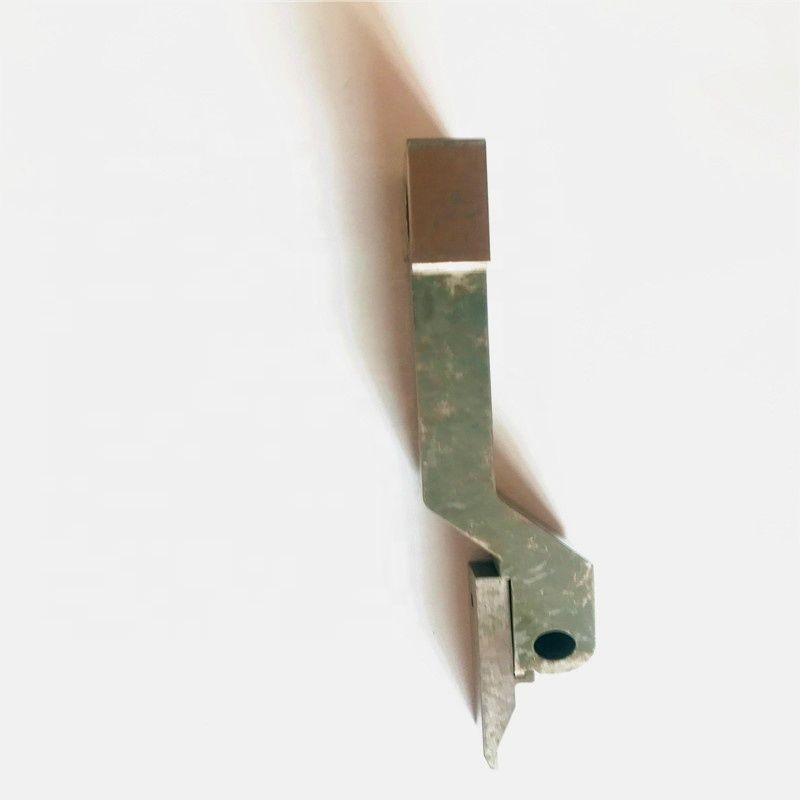

The clinching tool is the most important component for executing pushing over and clinching movements. Available in sizes of 10mm, 20mm, 30mm, or 40mm based on customer requirements.

This radiator tank clinching machine performs crimping of header plate teeth, securely locking the plastic tank to the core body. It creates a sealed space between the crimped plastic tank, sealing gasket, and header plate. The servo-type machine handles products of various specifications with step-by-step crimping set movement.

Technical Specifications

Clinching tool size	10mm, 20mm, 30mm, 40mm (customizable)
Driving type	Pneumatic or servo
Radiator height range	350-850mm
Max radiator width	100-800mm
Crimping method	Stepping way
Production capacity	Approximately 24 cores per hour
Driving force	Servo + pneumatic
Max crimped teeth quantity	100 pieces
Total power	1.5kW
Voltage	AC-220V, 50Hz
Dimensions (L×W×H)	2600×2200×1900mm
Weight	3.2 Ton

Key Features

The PLC-controlled tank clinching machine features a Taiwan-imported touch screen for setting crimping programs and monitoring working status. The control system stores multiple radiator crimping parameter groups.

The machine includes separate long header and short header crimping devices, with capability for dodge moves and step-forward movements. Available in one-position or two-position configurations.

About Wuxi Wondery Industry Equipment Co., Ltd.

Professional supplier of industrial machines serving automotive, HVAC, engineering vehicle, power generation, train, and ship industries. Specializing in radiator manufacturing equipment including fin machines, core builders, brazing furnaces, and various processing machines.

Established in 2008, we offer comprehensive services including technical consultation, installation, training, and maintenance. Our machines have been exported worldwide, with capability to design custom solutions based on specific requirements.

Frequently Asked Questions

What is the power supply requirement for the heat exchanger making machines?

The power supply is determined by customer requirements. We can adjust voltage and phase through a transformer or configure for direct use with the customer's voltage.

What information is needed for an accurate quotation?

Please provide technical requirements, drawings, photos, industrial voltage specifications, and planned production output.

What are the payment terms?

40% down payment, with 60% balance due before delivery (T/T transfer).

What is the typical delivery time?

30-60 days after receipt of down payment.
